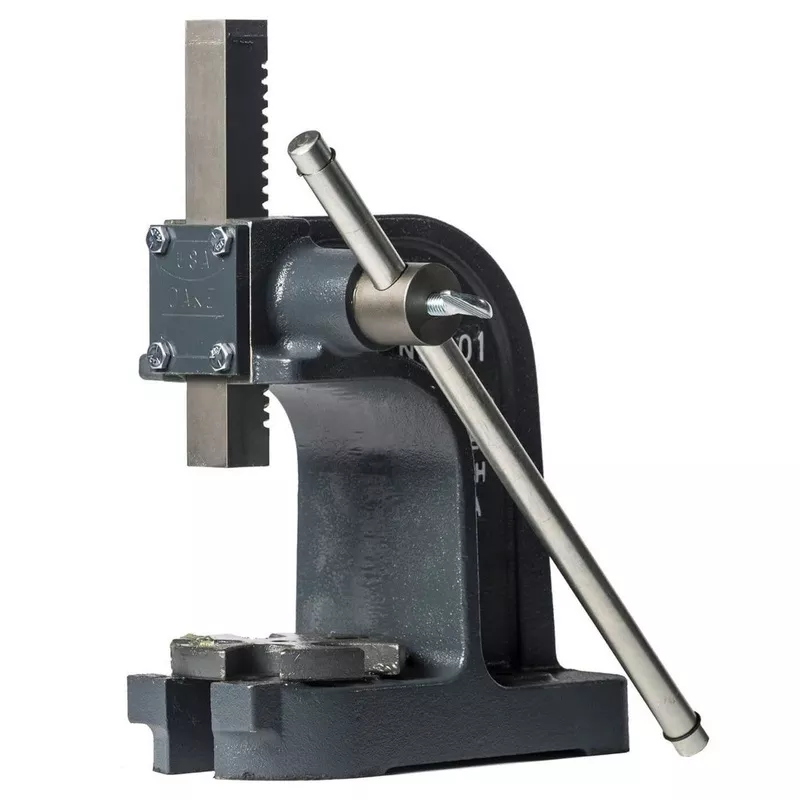

Dake 901004 Model 00 1 Ton Single Lever Slotted Table Arbor Press
Dont be fooled by its size. This 1 ton arbor press, with a slotted table plate and base opening, will get the job done for years to come.
Features:
- Shimmed ram cap permits take-up for potential wear.
- Smooth action gears permit finite ram control.
- Friction Brake
- Adjustable handle allows convenient handle positioning.
- Base opening and slotted table plate for arbor work.
Standard Equipment:
- Cast Iron Base
- Ram
- Slotted Table Plate
- Adjustable Handle
Specifications:
- Model Number | 00
- Part Number | 901004
- Capacity | 1 Ton
- Leverage Ratio | 25:1
- Ram Size | 1″ x 1″ x 7.5″
- Maximum Diameter Work | 7″
- Throat | 3.5″
- Largest Arbor | 1″
- Maximum Ram to Table | 5″
- Minimum Ram to Table | 4.5″
- Capacity Over Table | 5″
- Capacity Over Table Plate | 4.5″
- Base Length | 9″
- Base Width | 4.375″
- Height | 9-3/8″
- Weight | 25 lbs
