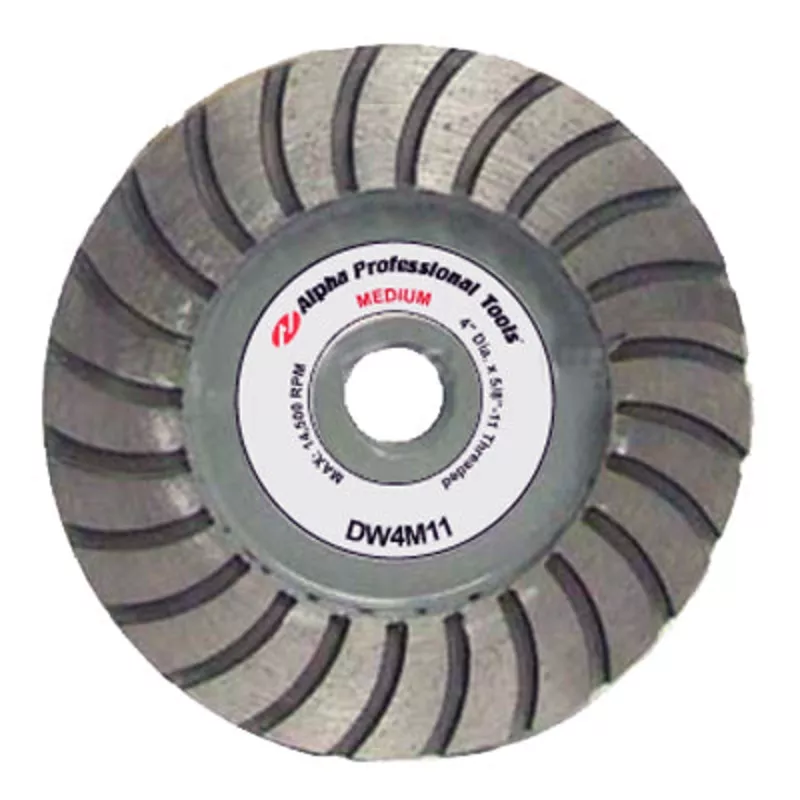

Alpha DW Style Grinding Wheels
Alpha DW Style is an aggressive turbo grinding wheel formulated to grind and shape natural stone. Fabricators and installers reach for these wheels to profile granite edges, smooth out inside sinkhole cuts, prepare surfaces for lamination, and remove heavy material in a hurry. The turbo segment design delivers fast stock removal saving time and reducing operator fatigue and the wheels are engineered for either wet or dry use on a standard 5/8″-11 angle grinder.
Features
- Aggressive Grinding Wheel Specially Formulated for Natural Stone Products
- Performs Exceptionally Well On Most Granites and Harder Materials
- Turbo Design Provides Fast Stock Removal
- Premium Choice for Any Grinding, Shaping or Beveling Work
- Fabricators Love Its Aggressiveness and Endurance
- Available in 4 and 6 Diameters
- Coarse and Medium Grits Available
- Can Be Used Wet or Dry
Models / Part Numbers
| Part No. | Size | Grit | Max RPM | Threads | UPC |
|---|---|---|---|---|---|
| DW4C11 | 4″ | Coarse | 14,500 | 5/8″-11 | 749173670039 |
| DW4M11 | 4″ | Medium | 14,500 | 5/8″-11 | 749173670046 |
| DW6C11 | 6″ | Coarse | 10,100 | 5/8″-11 | 749173460821 |
| DW6M11 | 6″ | Medium | 10,100 | 5/8″-11 | 749173460838 |
How to Use
- Thread the DW wheel directly onto a 5/8″-11 angle grinder spindle.
- Confirm the grinder’s no-load speed does not exceed the wheel’s max RPM (14,500 for 4″, 10,100 for 6″).
- Choose Coarse for aggressive material removal and edge profiling; choose Medium for smoother grinding and lamination prep.
- Run wet for the cleanest cut and longest wheel life, or dry where water is impractical.
- Use light, steady pressurelet the diamond segments do the work; do not force the wheel.
- Wear ANSI-rated eye protection, hearing protection and a respirator when running dry.
Specifications by Variant
4″ Direct thread Coarse Grit DW4C11
| Part No. | DW4C11 |
| UPC | 749173670039 |
| Size | 4″ |
| Type | Coarse Grit |
| Attachment | Direct thread |
| Thread | 5/8″-11 |
| Max RPM | 14,500 RPM |
| Recommended For | Grinding and shaping granite, engineered stone (wet or dry) |
| Packaged Weight | 1.00 lbs |
| Package Dimensions | 6.5″ x 6.5″ x 1.5″ |
| Country of Origin | Japan |
4″ Direct thread Medium Grit DW4M11
| Part No. | DW4M11 |
| UPC | 749173670046 |
| Size | 4″ |
| Type | Medium Grit |
| Attachment | Direct thread |
| Thread | 5/8″-11 |
| Max RPM | 14,500 RPM |
| Recommended For | Grinding and shaping granite, engineered stone (wet or dry) |
| Packaged Weight | 1.10 lbs |
| Package Dimensions | 6.5″ x 6.5″ x 1.5″ |
| Country of Origin | Japan |
6″ Direct thread Coarse Grit DW6C11
| Part No. | DW6C11 |
| UPC | 749173460821 |
| Size | 6″ |
| Type | Coarse Grit |
| Attachment | Direct thread |
| Thread | 5/8″-11 |
| Max RPM | 10,100 RPM |
| Recommended For | Grinding and shaping granite, engineered stone (wet or dry) |
| Packaged Weight | 2.00 lbs |
| Package Dimensions | n/a |
| Country of Origin | Japan |
6″ Direct thread Medium Grit DW6M11
| Part No. | DW6M11 |
| UPC | 749173460838 |
| Size | 6″ |
| Type | Medium Grit |
| Attachment | Direct thread |
| Thread | 5/8″-11 |
| Max RPM | 10,100 RPM |
| Recommended For | Grinding and shaping granite, engineered stone (wet or dry) |
| Packaged Weight | 2.20 lbs |
| Package Dimensions | n/a |
| Country of Origin | Japan |
Common Specifications
| Property | Detail |
|---|---|
| Type | Turbo grinding wheel |
| Mount | Direct thread |
| Thread | 5/8″-11 |
| Materials | Granite, engineered stone (incl. hard red granites) |
| Use | Wet or dry |
| Available Sizes | 4″, 6″ |
| Available Grits | Coarse, Medium |
| Country of Origin | Japan |
Related & Companion Products
- Alpha Diamond Cup Wheels
- Alpha Polishing Pads for Granite & Engineered Stone
- Alpha Angle Grinders & Variable-Speed Polishers
- Alpha Dry Core Bits for Granite & Engineered Stone
FAQsWhat is the difference between Coarse and Medium?
The aggressiveness of the grinding action. Coarse removes material faster and leaves a rougher surface; Medium grinds more smoothly and is preferred for finishing work and lamination prep.
Which materials can I grind with the DW Style?
Granite and engineered stone, including the very hard red granites. The DW Style is not recommended for marble or softer materialsuse a softer-bond wheel for those.
Can I run the DW wet or dry?
Both. The wheels are designed for dry grinding but perform exceptionally well wet. Wet grinding extends wheel life and controls dust.
What is the maximum safe RPM?
14,500 RPM for the 4″ wheel and 10,100 RPM for the 6″ wheel. Never exceed these limits.
What thread do these wheels use?
5/8″-11the standard arbor on most US angle grinders. No adapter is required.
Are these wheels good for profiling edges?
Yes. The turbo design profiles granite edges quickly and is widely used for shaping straight, eased and demi-bullnose edges before polishing.
How do they compare to a cup wheel?
A turbo wheel like the DW is shaped for edges and contoured cuts; a cup wheel is designed for flat surface grinding. Use the DW for edges, inside cuts and shaping; use a cup wheel for top-surface flatting.
What PPE should I use?
ANSI-rated safety glasses, hearing protection and a respirator (especially when grinding dry). Use a guard on the grinder and never remove safety equipment.
Where are these wheels made?
Japan.
Videos
No product-specific videos are currently available from the manufacturer or DST.
Documentation
- DW Grinding Wheel Helpful Hints
- Diamond Grinding Cup Wheel SDS
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov. Always wear appropriate PPE.
